Description:
- Modern appearance
- Special design for HVAC industry
- Multi–function and easy operation
- LCD shows working mode, time, and set–point and so on.
- Color optional (Golden yellow, Silver, Grey, etc.).

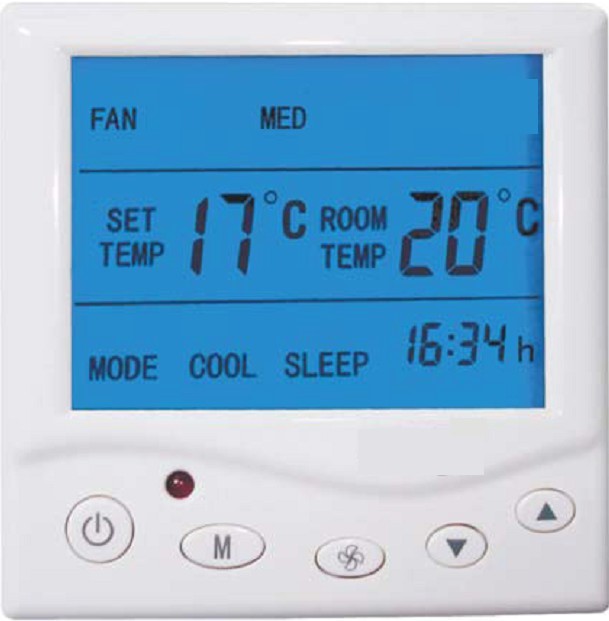

Thermostat
Features:
- LCDdisplay,BlueBack–light White back-light, Gre. en back-light (optional)
- Fan Speed: High,Med, Low and Auto.
- High reliable microprocessor, stronger anti–jamming ability.
- Fahrenheit or Centigrade display (optional).
- Programmable, i.e.5+1+1 and customizing is acceptable (optional).
- Net Work & communication (optional).
- Normally closelopen contact for main system (optional).
- EEPROM retains the last events and temperature after a loss of power.
Technical Data:
- Dimensions: 86mm X86mm X 12mm.
- Power Supply: 24Vac, 110Vac or 220Vac±10%.
- Work Ambient: –10–60℃. Relative Humidity: 95%RH.
- Temperature Range: 10℃~30℃.
- Internal or external NTC sensor( optional).
- Accuracy: ± 1℃.
- Shell Material: Importing Anti–flaming PC.
- Modulating Output: 0–10 Vdc or 4–20 mA; or 3–point Floating(optional).
- Occupied & un–occupied (optional).
- Long–Distance remote communication can match with ELS8000 auto–control building system(optional).
- Communication Connection: RS485, M–bus(optional).
